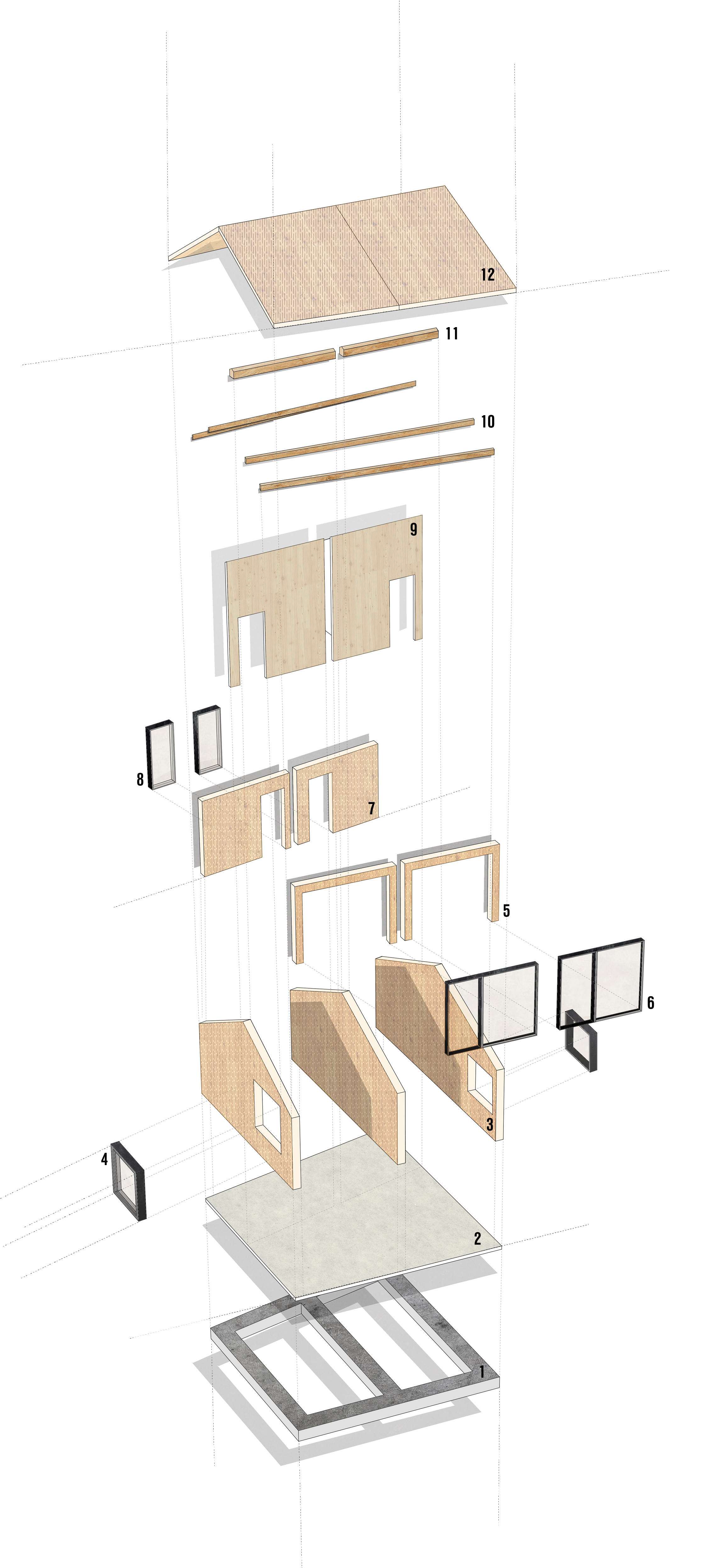

CLT DETAILS: THE RETAIL UNITS

1. Concrete strip foundations

2. Polished screed flooring

3. CLT structural wall panels

4. Black aluminium window panels

5. CLT structural wall panels

6. Black aluminium door frame + bifold doors

7. CLT structural wall panels

8. Black aluminium door frame

9. Gypsum interior walls with CLT trim

10. Purlins

11. Ridge beam

12. CLT roof panels

1:100 CLT STRUCTURAL STRATEGY

ROOF DETAILS



1. Aluminium coping

2. Sarnafil Flashing

3. Timber parapet support

4. Timber insulation support

5. 165mm Insulation

6. Vertical flashing overlap

7. Specified sarnafil securement

8. Hot air weld connecting sarnafil

9. Sarnafil membrane

10. Timber surface support to connect sarnafil

11. 125mm insulation

12. DPM

13. Concrete screed infill

14. 300 x 100 trapezium steel sheet

15. Steel rod

16. Steel to gypsum connection

17. 50mm insulared gypsum supsended ceiling board





FLOOR DETAILS



18. 20mm Polished Screed Floor

19. 75mm Concrete Screed

20. 20mm Underfloor heating pipes

21. 30mm Insulation

22. Concrete Screed

23. Concrete slab flooring 1197 x 150 mm





WALL DETAILS



24. 225mm Structural Beam

25. Scottish larch cladding 20 x 80mm

26. Timber batten support 50 x 50mm

27. Air gap

28. Timber support for cladding

29. DPM

30. 16mm Air gap

31. Blockwork supporting cladding

32. 50mm cavity

33. 75mm insulation

34. Vapour Control Layer

35. Cavity tie

36. Blockwork between steel frame

37. 15mm Blockwork





WINDOW DETAILS



38. Timber support for cladding

39. Brick facade

40. DPM

41. Flashing

42. Catnic lintel 300mm

43. Window casing

44. Double glazed glass

45. Plasterboard sill

46. Timber window support

47. Cavity closer



FOUNDATIONS AND GROUND CONDITION





48. Hardcore

49. Concrete beam

50. Concrete block

51. Concrete pad foundation

52. Blockwork supporting block and beam floor

53. Pebbles

54. Coarse gravel

55. Fine gravel 50mm

56. Fine sand 50mm

57. Paving slabs 400mm

58. Ground

1:20 DETAIL SECTION

The Training Centre

The retail units are constructed using CLT panels as the structural basis for the building. An affordable, sustainable and quick construction technique this strategy is adopted in each of all eight retail units.
